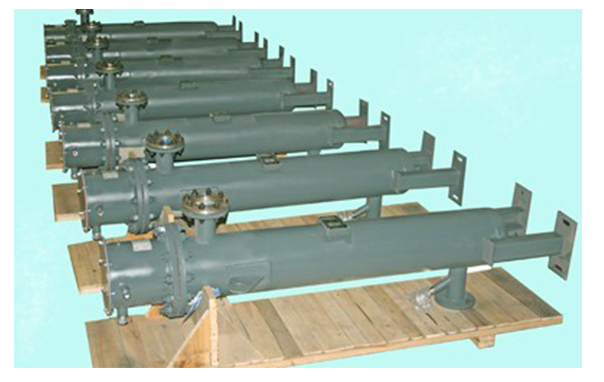

Product Name £º180KW air circulation electric heater
Product Detail £º

Product Overview:
The electric heater of forced convection by heating the fluid. I.e., one end of the pump fluid into the pump chamber in the heater by heating in the heater flows out the other end, a heating method by means of a forced circulation pump, compared with the conventional heating method, significant energy saving technology Science, easy to install, has obvious economic benefits.

Product Features:
1 Small size, big power:
The main use of cluster internal heater tubular heating elements, tubular heating elements in each cluster maximum power up to 1MW.
2 fast thermal response, high precision, high overall thermal efficiency.
3 wide range of applications, adaptability:
The heater is suitable for explosion-proof or general occasions, it's proof grade up to B-and C-class, and its pressure up to 20Mpa. Can be installed using the vertical or horizontal cylinder according to user needs.
4 heating temperature is high:
The heater is designed maximum working temperature up to 650 ¡æ, which is generally the heat exchanger can not get.
5 fully automated control:
By the heater circuit design, can easily achieve outlet temperature, pressure, flow and other parameters of automatic control, and with computer networking, human-computer dialogue.
Long 6 life, high reliability:
The electric heaters are made of special materials, plus design power load than conservative, heater using multiple protection, making the heater safety and longevity is greatly increased.

Application:
1 for heating oil fields, refineries, chemical plants and other industries of the fluid medium.
2 kinds of water heating, including civil bathroom heating the water heating and industrial process water.
3 heating hydrocarbons, including thermal oil, fuel oil, asphalt, and paraffin.
4 gas heating, including H2, N2, and various inert gases and organic gas mixture.
5 washing machine, heating the ice-melting tank, the solution comprises NaOH and various detergents.
6 air heating for a certain pressure, some powder dry, chemical process, and spray drying.
7 superheated steam heating.
